TLP 100
Click to enlarge

TLP-100.1 Log Periodic Antenna 100-1000MHz

  • Frequency Range: 100-1000 MHz
  • Gain: 6.5 dBi typical
  • VSWR: 2.0:1 (typical) (50 Ω)
  • Polarization: Linear

View Product Specs PDF


Request a QuoteAll Inquiries welcome

  • Description
  • Spec Sheet
Description

TLP-100.1

The TLP-100.1 is a transportable log periodic antenna that covers the 100-1000 MHz frequency range and is designed for transmit and receive purposes. The antenna uses a 3 piece boom for quick assembly and disassembly in the field, with minimal or no tools and can be used in the vertical or horizontal mode. The antennas longest elements are removable and clamp onto an element adapter making it easier to transport; each element and element position is numbered to insure it is installed in its proper position.

The TLP-100 is constructed of high quality aluminum with all stainless steel hardware resulting in a lightweight and high strength antenna ideally suited for fixed or transportable systems.

Spec Sheet

Spec Sheet

ELECTRICAL SPECIFICATIONS

SPECIFICATIONS PERFORMANCE
Frequency Range 100-1000 MHz
VSWR 2.0:1 (typical) (50 Ω)
Gain 6.5 dBi typical
Polarization Linear
Vertical -3dB Beamwidth 40°- 90°
Horizontal -3dB Beamwidth 70° – 140°
Maximum Power Input 1000 Watts
Front to Back 25 dB typical

MECHANICAL & ENVIRONMENTAL SPECIFICATIONS

SPECIFICATIONS PERFORMANCE
Connector 7/8” EIA flange
Mounting Vertical or Horizontal
Color Gray or custom
Boom Length 84” (2134mm)
Shortest Element Length 1.73” (43.94mm)
Longest Element Length 32.75” (1962.15 mm)
Weight TBD
Temperature -40°C to +80°C
Wind Survival 120 MPH (193.12 km)
Lightning Protection Direct Ground
SKU: TLP-100.1 Categories: Antennas, Military

Related products

VT-10 VHF Transportable Tactical Antenna Omni 30-88 MHz

VT-10 VHF Transportable Tactical Antenna Omni 30-88 MHz

Antennas, Military
Frequency Range: 30-88 MHz Gain: 2 dBi VSWR: 2.5:1 max Polarization: Vertical Pattern: Omnidirectional Deployed Time: 1 Person, less than 5 minutes  View Product Specs PDF   |   Request Quote Not finding what you're looking for? We can custom-build antennas to your exact specifications. Contact us here or call 1-940-325-3301 for more information.
Quick view

BCV-500 UHF Bicone Vehicle Antenna Omni 500-2500 MHz

Military, Wideband, Antennas
Frequency Range: 500-2500 MHz Gain: 4 dBi max, 1 dBi min VSWR: 2.0:1 Max Polarization: Vertical Pattern: Omnidirectional Size: 12"x12" OD  View Product Specs PDF   |   Request Quote Not finding what you're looking for? We can custom-build antennas to your exact specifications. Contact us here or call 1-940-325-3301 for more information.
Quick view

WB-1048M VHF/UHF Vehicular Jamming Antenna 100-520 MHz

Military, Wideband, Antennas
Frequency Range: 100-520 MHz Gain: (see spec sheet for measured patterns) VSWR: 3.5:1 max Polarization: Nominally Vertical Pattern: Omnidirectional Size: 23.62"  View Product Specs PDF   |   Request Quote Not finding what you're looking for? We can custom-build antennas to your exact specifications. Contact us here or call 1-940-325-3301 for more information.
Quick view

DPV-82 VHF Vehicle Antenna Omni 116-174 MHz

Antennas, Aviation, DPV Series, Military
Frequency Range: 116-174 MHz Gain: 0 dBi minimum VSWR: 2.0:1 max Polarization: Vertical Pattern: Omnidirectional  View Product Specs PDF   |   Request Quote Not finding what you're looking for? We can custom-build antennas to your exact specifications. Contact us here or call 1-940-325-3301 for more information.
Quick view

WB-512M VHF/UHF Vehicle Magnetic Mount Antenna 118-512 MHz

Military, Wideband, Antennas
Frequency Range: 118-512 MHz Gain: (see spec sheet for measured patterns) VSWR: 3.5:1 max Polarization: Nominally Vertical Pattern: Omnidirectional Size: 16.93"  View Product Specs PDF   |   Request Quote Not finding what you're looking for? We can custom-build antennas to your exact specifications. Contact us here or call 1-940-325-3301 for more information.
Quick view

BCV-400 UHF Bicone Vehicle Antenna Omni 400-2000 MHz

Military, Wideband, Antennas
Frequency Range: 400-2000 MHz Gain: 4 dBi Max, 1 dBi Min. VSWR: 2.0:1 VSWR Max Polarization: Vertical Pattern: Omnidirectional Size: 26.5"x12" OD  View Product Specs PDF   |   Request Quote Not finding what you're looking for? We can custom-build antennas to your exact specifications. Contact us here or call 1-940-325-3301 for more information.
Quick view

WB-5s Ultra-Wideband Vehicle Antenna 500-2500 MHz

Military, Wideband, Antennas
Frequency Range: 500-2500 MHz Gain: 2-4 dBi (typical) VSWR: 3.5:1 (50 Ω) Polarization: Vertical  View Product Specs PDF   |   Request Quote Not finding what you're looking for? We can custom-build antennas to your exact specifications. Contact us here or call 1-940-325-3301 for more information.
Quick view

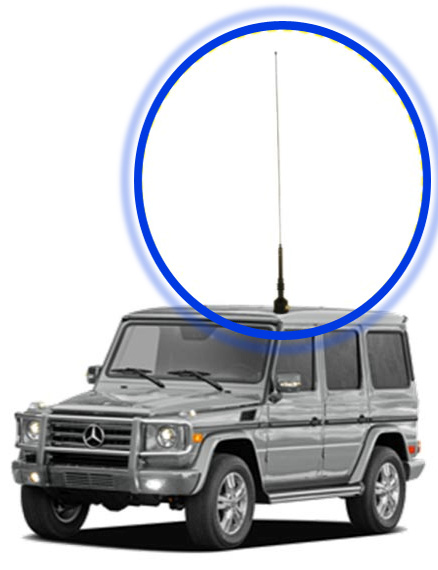

WB-25512W VHF/UHF Vehicle Magnetic Mount Antenna 25-512 MHz
