DCP-2100 15 dBiC CIRCULARLY POLARIZED ANTENNA
- Frequency Range: 2100-2500 MHz
- Gain: 15.5 dBiC
- VSWR: 1.5:1 Max
- Polarization: Right-Hand Circular
- Size: 14.7 Inches x 14.3 Inches x 6.4
Inches (373.4 mm x 363.2 mm x
162.6 mm) / 4.5 lbs. (2.04 kg)
Request a QuoteAll Inquiries welcome
Description
DCP-2100
The DCP-2100 is a right hand circularly polarized dipole array enclosed in rugged weatherproof anodized aluminum housing. The antenna is specifically designed for data applications in the 2.1 ~ 2.5 GHz band. The antenna can be mounted on a pole or flat surface such as a wall or bulkhead. A type N female connector is provided on the back for connection.
The fundamental advantage of circular polarization is that all reflections change the direction of polarization, precluding the usual addition or subtraction of main and reflected signals.
Antenna exhibits low sidelobes to minimize multipath.
Rugged design to withstand rigorous service requirements.
Spec Sheet
Spec Sheet
ELECTRICAL SPECIFICATIONS
| SPECIFICATIONS | PERFORMANCE |
|---|---|
| Frequency Range | 2100-2500 MHz |
| VSWR | 1.5:1 Max |
| Forward Gain | 15.5 dBiC |
| Polarization | Right-Hand Circular |
| Max Power Input | 100 Watts |
| Impedance | 50 Ohms° |
| Elevation (Vertical) -3 dB Beamwidth | 28° +/ -2° |
| Azimuth (Horizontal) -3 dB Beamwidth | 28° +/ -2° |
| Front-to-Back Ratio, Avg (dB) | 25 |
MECHANICAL & ENVIRONMENTAL SPECIFICATIONS
| SPECIFICATIONS | PERFORMANCE |
|---|---|
| Connector | Type “N” Female |
| Mounting | 2.38 Max O.D. Tube |
| Dimensions and Weight W/O Mounting Hardware |
14.7 Inches x 14.3 Inches x 6.4 Inches (373.4 mm x 363.2 mm x 162.6 mm) / 4.5 lbs. (2.04 kg) |
| Color | Gray |
| Environment | Indoor/ Outdoor/ Shipboard Capable |
| Wind Survival | 125 MPH (201.2 km) |
| Lightning Protection | Direct Ground |
Related products

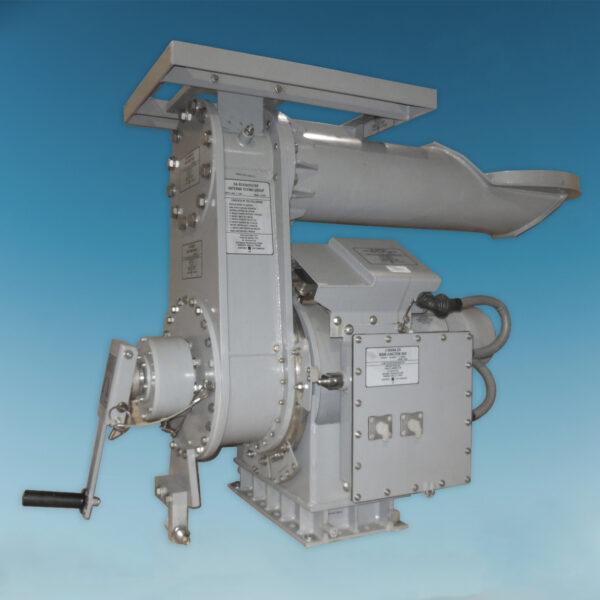

SINGLE- HEAVY DUTY SHIPBOARD TILT UNIT OA-9242A (V) 3 S/R
