DCP-2100 15 dBiC CIRCULARLY POLARIZED ANTENNA
- Frequency Range: 2100-2500 MHz
- Gain: 15.5 dBiC
- VSWR: 1.5:1 Max
- Polarization: Right-Hand Circular
- Size: 14.7 Inches x 14.3 Inches x 6.4 Inches (373.4 mm x 363.2 mm x 162.6 mm) / 4.5 lbs. (2.04 kg)
DPV-110A 2200-2400 MHz S-BAND ANTENNA
- Frequency Range: 2200-2400 MHz
- Gain: 10 dBi
- VSWR: 1.5:1 typ, 1.8:1 max (50 Ohm)
- Polarization: Vertical
- Size: 48” (1219.2 mm)
DPV-108A 1750-1850 MHz L-BAND ANTENNA
- Frequency Range: 1750-1850 MHz
- Gain: 10 dBi
- VSWR: 1.5:1 Max (50 Ohm)
- Polarization: Vertical
- Size: 52.23”(1327.15mm)
DPV-108 L-Band Antenna 1750-1850 MHz Omni-Directional Antenna
- Frequency Range: 1750-1850 MHz
- Gain: 10 +/- 0.3 dBi
- VSWR: 1.5:1 Max
- Polarization: Vertical
- Size: 48 inches x 1.5 inches O.D. ; 3 lbs.
BCV-116M Rugged VHF/UHF Bicone Antenna Omni 100-400 MHz
- Frequency Range: 100-400 MHz
- Gain: + 1 to +5 dBi (Frequency Dependent)
- VSWR: 2.0:1 VSWR Max (2.5:1 Max 100-116 MHz)
- Polarization: Vertical
- Pattern: Omnidirectional
- Size: 40"x 40" O.D.
AWS360D-1710-7-T0M-D DAS Dual Band AWS PCS Antenna 7 dBi LTE
- Frequency Range: 1710 to 2155 MHz and 1850 to 1990 MHz bands
- Gain: 7 dBi (both bands)
- VSWR: 1.7:1 max
- Polarization: Vertical
- Beamwidth: 16 degrees vertical; 360 degrees horizontal
- Size: 48" x 2" O.D.
- Mounting: Pole mount (up to 3" diameter)
- Model Number: AWS360D-1710-7-T0M-D
ISM50-2400-18-T0-N 2400-2500 MHz 18 dBi 50 Degree ISM Panel Antenna
- Model Number: ISM50-2400-18-T0-N
- Part Number: 1009-0428-401
- Frequency Range: 2400-2500 MHz
- Gain: 18 dBi
- Polarization: Vertical
- Beamwidth: 9 degrees vertical, 50 degrees horizontal
- Size: 32.1" x x 5.1" x 2.2"
BRSAWS360T-698 Triple Band LTE DAS Antenna AWS/700MHz/AWS Omni
- Frequency Range: 1710-2155 MHz, 698-896 MHz, 1710-2155 MHz
- Gain: 7 dBi, 2 dBi, 7 dBi
- VSWR: < 1.7:1 Typical, < 2.0:1 Maximum
- Polarization: Vertical
- Vertical -3dB Beamwidth: 16° / 70° / 16° ( +/- 5°)
- Horizontal -3dB Beamwidth: 360o (+/- 5°)
- Size: 60" x 2" OD
- Mounting: Top mount
- Model Number: BRSAWS360T-698/1710-7/2/7-T0M-D
Model WB-921M GSM 3G Rugged Triband Vehicle Antenna
- Frequency Range: 800-960, 1710-1990, 2110-2170 MHz
- Gain: 3 dBi (800-960 MHz); 4 dBi (1710-1990, 2110-2170 MHz)
- VSWR: 2.5:1 max
- Polarization: Nominally Vertical
- Pattern: Omnidirectional
- Size: 600mm

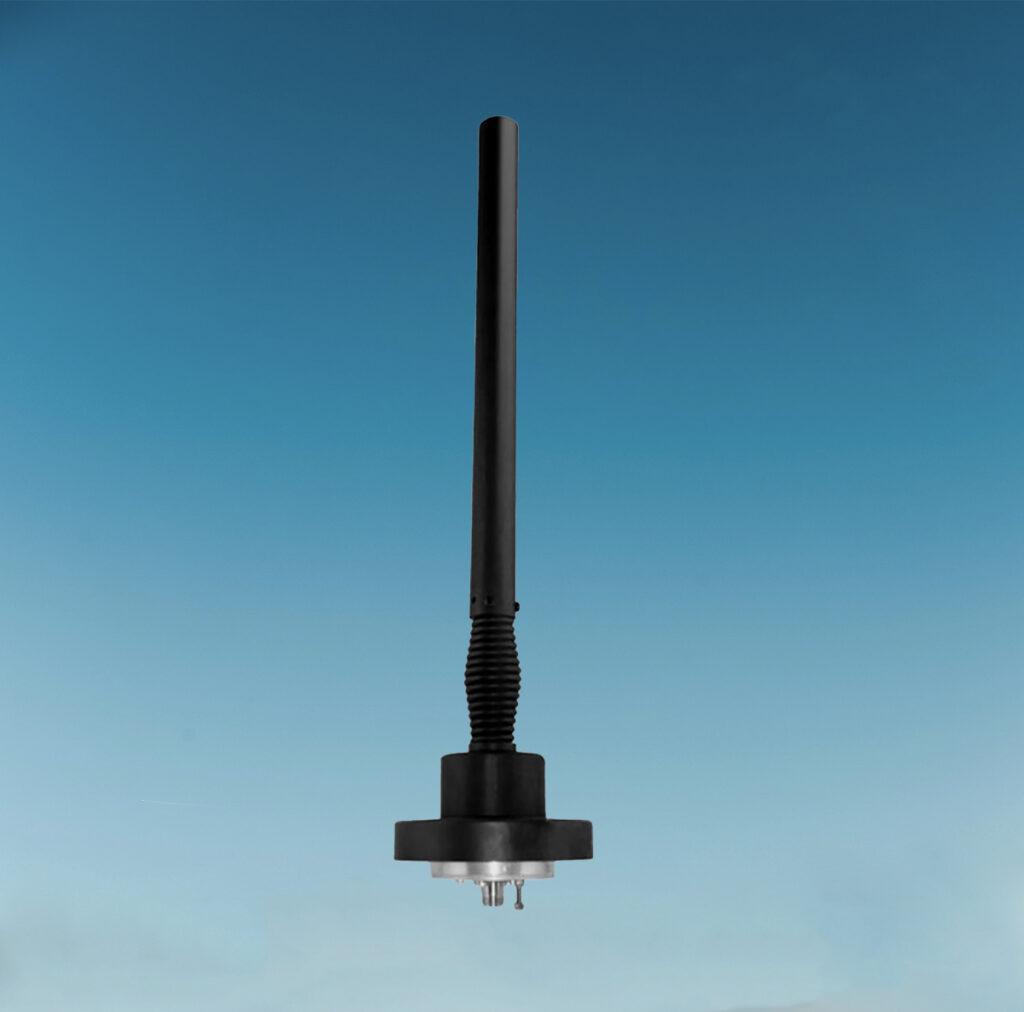

WB-2400M High Gain Rugged Vehicle Antenna 2100-2500 MHz
- Frequency Range: 2100-2500 MHz
- Gain: 3-8 dBi
- VSWR: 2.5:1 max
- Polarization: Nominally Vertical
- Pattern: Omnidirectional
- Size: 620mm
- Model Number: WB-2400M
- Part Number: 1000-2310-201
TACSAT-214 Handheld Tactical SATCOM Antenna System 240-350 MHz
- Frequency Range: 240-350 MHz
- Gain: 5 dBic
- VSWR: 2.0:1
- Polarization: Right Hand Circular
- Pattern: Directional
- Power Rating: 200 CW
- Weight: 388 g (13.7 oz)
- Model Number: TACSAT-214
- Part Number(s): 1000-2311-201
BMT35BRC-5755-10-TA-N Bi-Directional Wi-Fi Train Antenna 5755-5875 MHz 10 dBi
- Frequency Range: 5755-5875 MHz
- Gain: 10 dBi
- VSWR: 1.8:1 max
- Polarization: Right Hand Circular
- Beamwidth: 35 degrees vertical, 35 degrees horizontal
- Size: 8.5" L x 8.5" W x 3.5" H
- Model Number: BMT35BRC-5755-10-TA-N
- Part Number: 1009-0705-401
BMT55RC-2400-9-TA-N Wi-Fi Train Antenna
2400-2485 MHz 9 dBi
- Frequency Range: 2400-2485 MHz
- Gain: 9 dBi
- VSWR: 1.8:1 max
- Polarization: Right Hand Circular
- Beamwidth: 55 degrees vertical, 55 degrees horizontal
- Size: 7" L x 8" W x 3" H
- Part Number: 1009-0706-401
- Model Number: BMT55RC-2400-9-TA-N
DPV-124 UHF Multi Band Omni Antenna 4 dBi 850-960/1760-1990/2000-2500 MHz
- Frequency Range: 850-960/1760-1990/2000-2500 MHz
- Gain: 4 dBi
- VSWR: 2.0:1 max
- Polarization: Vertical
- Pattern: Omnidirectional
- Size: 56" L
- Model Number: DPV-124
DPV-122 UHF Multi Band Omni Antenna 2 dBi 850-960/1760-1990/2000-2500 MHz
- Frequency Range: 850-960/1760-1990/2000-2500 MHz
- Gain: 2 dBi
- VSWR: 2.0:1 max
- Polarization: Vertical
- Pattern: Omnidirectional
- Size: 42" L
- Model Number: DPV-122
BRSAWS360Q-698 Wideband MIMO Dual Antenna Omni 700/850 MHz and AWS/PCS Side Mount
- Frequency Range: 698-896 and 1710-2155 MHz
- Gain: 2 dBi (698-896 MHz); 2 dBi (AWS and PCS bands)
- VSWR: 2.0:1 max
- Polarization: Vertical
- Beamwidth: 75/75/75/75 degrees vertical; 360 degrees horizontal (omni)
- Size: 60” x 2.0” OD
- Mount: Next to a post or on a utility pole
- Model Number: BRSAWS360Q-698/1710-2/2/2/2-T0-D
CMV-605E HF Conical Monopole Broadband Antenna 2-30 MHz 4 dBi Omni
- Frequency Range: 2-30 MHz
- Gain: 4 dBi (from 5-30 MHz - reduced gain at 2-5 MHz)
- VSWR: 2.5:1 max
- Polarization: Vertical
- Pattern: Omnidirectional
- Size: 36' H
- Military Nomenclature: n/a
RTR Towers 100′ Guyed RTR Antenna Tower 6 Arm KD
- Height: 100'
- Support: Guyed
- Arms/Mounts: 6
- Assembly: Knock-down (unassembled)
- Part Number: 1500-0451-202
RTR Towers 70′ Guyed RTR Antenna Tower 8 Arm KD
- Height: 70'
- Support: Guyed
- Arms/Mounts: 8
- Assembly: Knock-down (unassembled)
- Part Number: 1500-0448-204
VHF360-216-8-T0 VHF Broadband Antenna 216-226 MHz 8 dBi Omni
- Frequency Range: 216-226 MHz
- Gain: 8 dBi
- VSWR: 1.5:1 nominal
- Polarization: Vertical
- Beamwidth: 16 degrees vertical, 360 degrees horizontal (omni)
- Size: 240" L x 3.0" OD or 180" L x 3.0" OD
TLP-20 VHF/UHF Transportable LP Antenna 20-1000 MHz
- Frequency Range: 20-1000 MHz
- Polarization: Vertical or Horizontal
- Pattern: Log Periodic
PSB40DP-4960-12-T0-N PSB 3-Port Outdoor MIMO RFID Antenna 4000-6000 MHz 12 dBi
- Frequency Range: 4900-6000 MHz
- Gain: 12 dBi
- VSWR: 2.0:1
- Polarization: Vertical, Horizontal, Vertical
- Beamwidth: 40 degrees vertical, 40 degrees horizontal
- Size: 2.7" H x 3.7" W x 5.5" D
ISM25-2400-12-T0-N-SV6 UHF RFID WiFi Panel Antenna 2400-2485 MHz 12 dBi 25 Degree
- Frequency Range: 2400-2485 MHz
- Gain: 12 dBi
- VSWR: 1.6:1 max
- Polarization: Linear
- Beamwidth: 70 degrees vertical, 25 degrees horizontal
- Size: 8.55” x 4.46” x 2.19”
BMT60B-2400-7-TA-N WiFi Train Antenna
2400-2485 MHz 7 dBi
- Frequency Range: 2400-2485 MHz
- Gain: 7 dBi
- VSWR: 1.8:1 max
- Polarization: Vertical
- Beamwidth: 60 degrees vertical, 60 degrees horizontal
- Size: 7" L x 8" W x 3" H
- Part Number: 1009-0476-405
- Model Number: BMT60B-2400-7-TA-N
